CONSTRUCTION
-
Application: This cable is used for general indoor and outdoor purposes (e.g. Portable tools, washing machine, aircons and vacuum cleaners)
Voltage rating: 250/500V

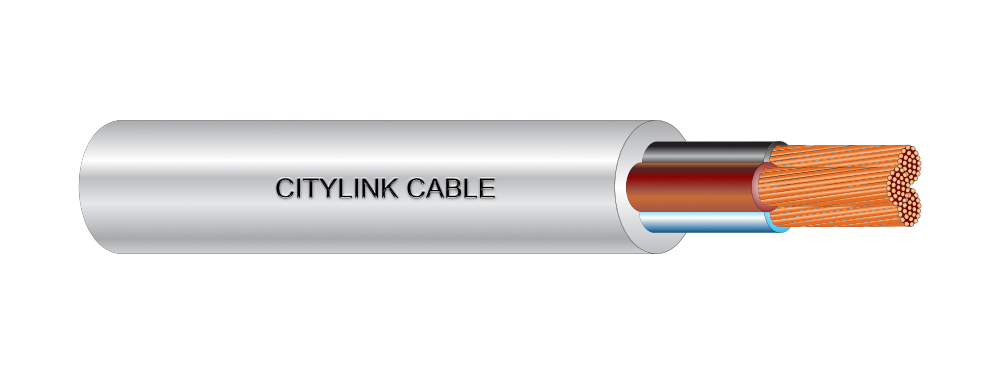

Construction: Flexible plain annealed copper conductor, PVC insulated, PVC sheathed cable
Insulation Colour: 2 Core : Blue and Brown
3 Core : Blue, Brown and Green/Yellow
4 Core : Blue, Brown,Black and Green/Yellow
Sheathed Colour: Black or custom made colour
Specification: BS2004
Operating Temperature: 90°C
Standard Length: 90 meters
Color: Black or custom made color
For other special sizes,please consult our sales representative.
| Nominal Cross-Sectional Area (Sq.mm) | Construction, Number/Wire Diameter (No./mm) | Thickness of Insulation | Approx. Overall Diameter (mm) | Standard Packing Length (m/coil) | |
|---|---|---|---|---|---|
| CU/PVC/PVC-2 CORE | |||||
| 0.66 | 23/0.193 | 0.64 | 7.20 | 90 | |
| 1.15 | 40/0.193 | 0.64 | 7.70 | 90 | |
| 2.01 | 70/0.193 | 0.64 | 9.20 | 90 | |
| 3.15 | 110/0.193 | 0.64 | 10.00 | 90 | |
| 4.64 | 162/0.193 | 0.76 | 12.20 | 90 | |
| CU/PVC/PVC-3 CORE | |||||
| 0.66 | 23/0.193 | 0.64 | 7.50 | 90 | |
| 1.15 | 40/0.193 | 0.64 | 8.20 | 90 | |
| 2.01 | 70/0.193 | 0.64 | 9.70 | 90 | |
| 3.15 | 110/0.193 | 0.64 | 10.60 | 90 | |
| 4.64 | 162/0.193 | 0.76 | 12.90 | 90 | |
| CU/PVC/PVC-4 CORE | |||||
| 0.66 | 23/0.193 | 0.64 | 8.20 | 90 | |
| 1.15 | 40/0.193 | 0.64 | 9.40 | 90 | |
| 2.01 | 70/0.193 | 0.64 | 10.50 | 90 | |
| 3.15 | 110/0.193 | 0.64 | 11.50 | 90 | |
| 4.64 | 162/0.193 | 0.76 | 14.20 | 90 |
